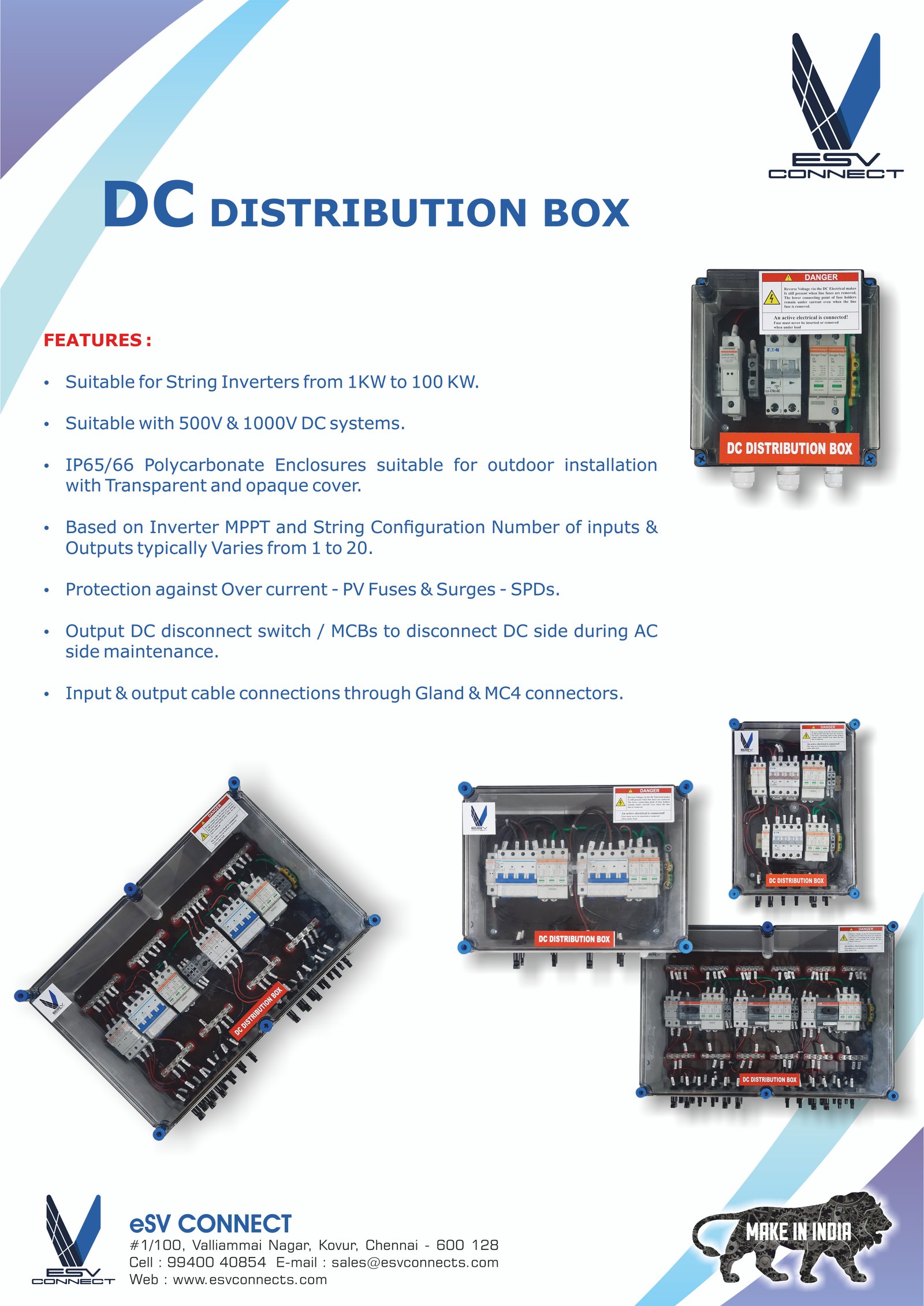

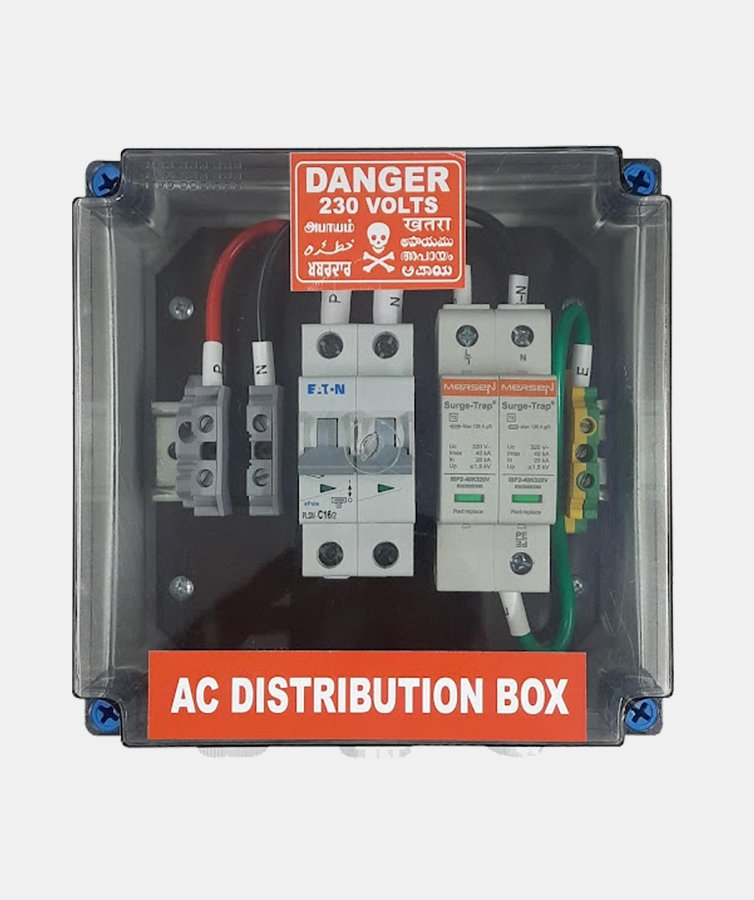

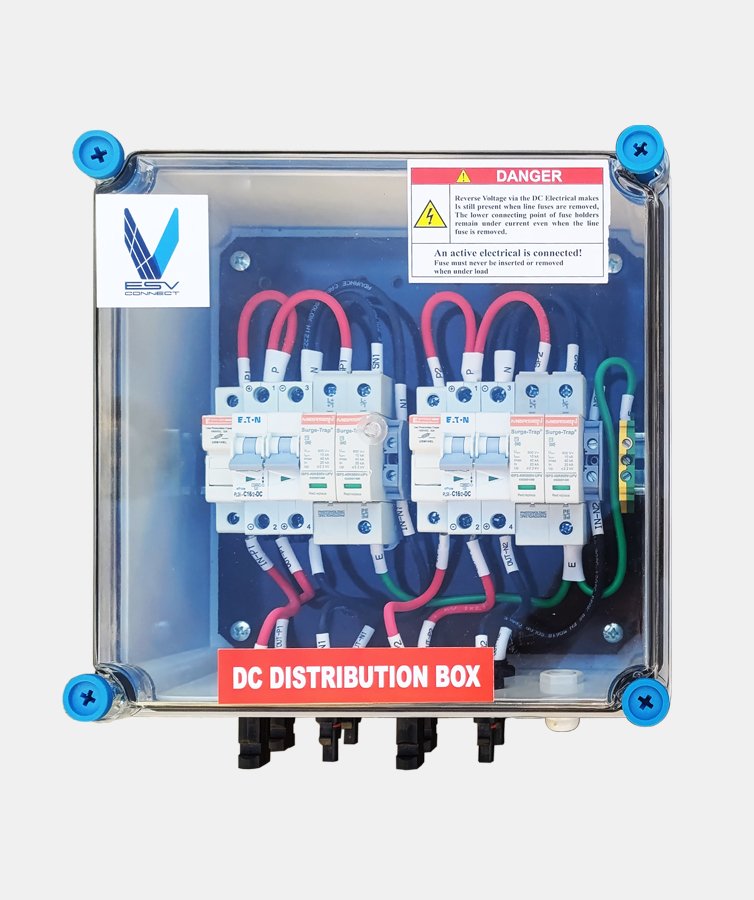

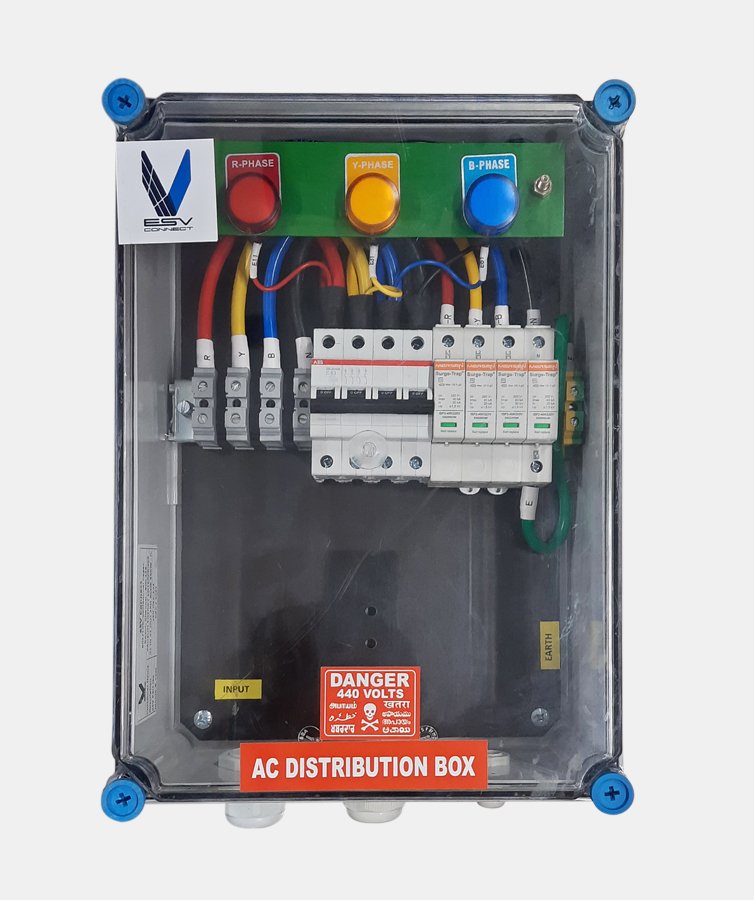

eSV Connect offers array junction DC distribution boxes (DCDB), AC distribution boxes (ACDB), Array Combiner boxes (AJB) and string monitoring boxes for solar PV applications and are designed to meet international electrical standards. These boxes provide interconnection between input leads from the solar module arrays and the output leads to the inverter.
The range of distribution boxes include the ones that are suitable for both single phase and three phase inverters as well as both On-Grid inverters and Off-grid inverters.The combiner boxes are availabel for 500V/ 1000V / 1500V systems.
The range of products and the features are described below:

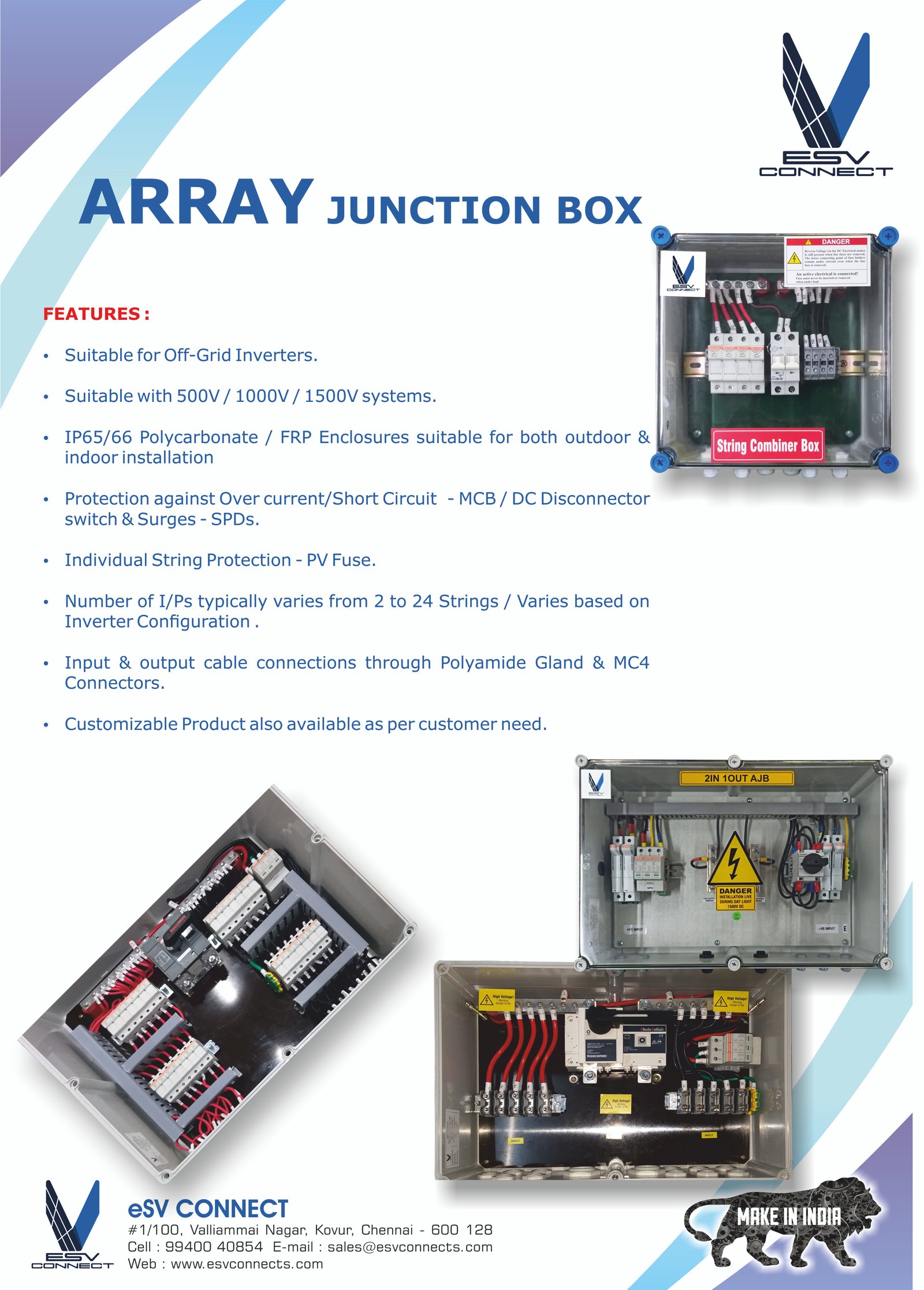

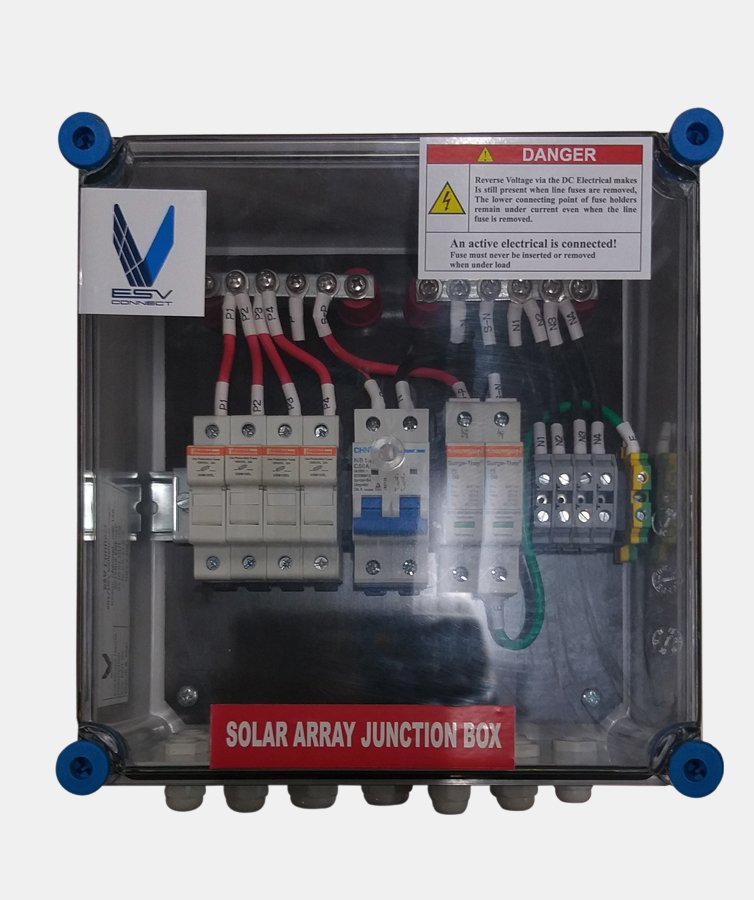

Array Junction Boxes (AJB), also referred to as PV combiner boxes, collects DC power from PV strings with blocking diodes on each string for protecting panels from reverse current flow. The collected power is then transferred to inverter to be converted into AC.

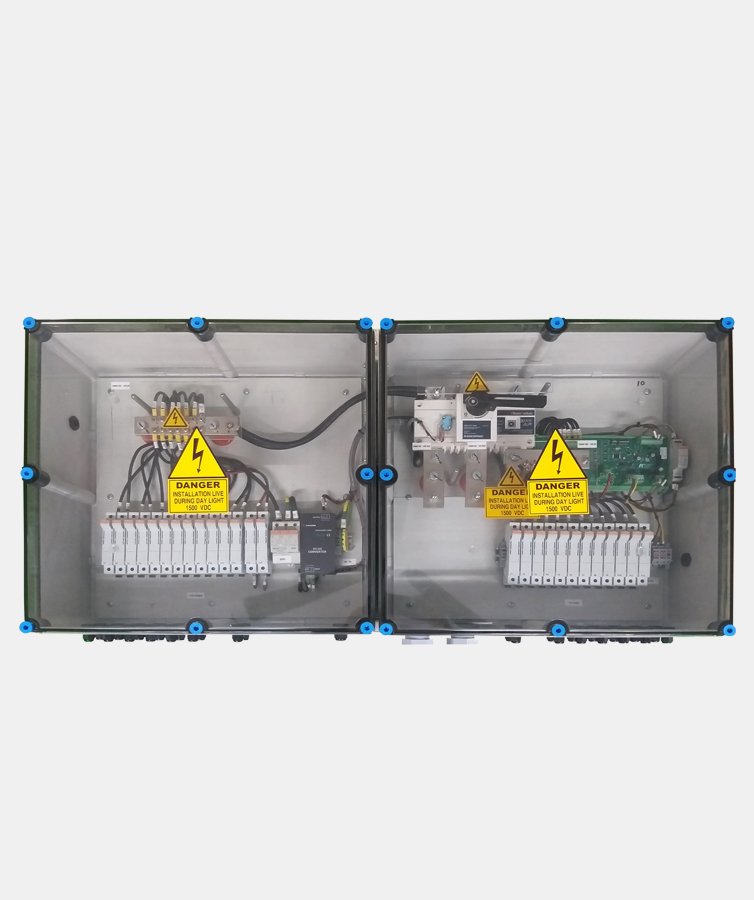

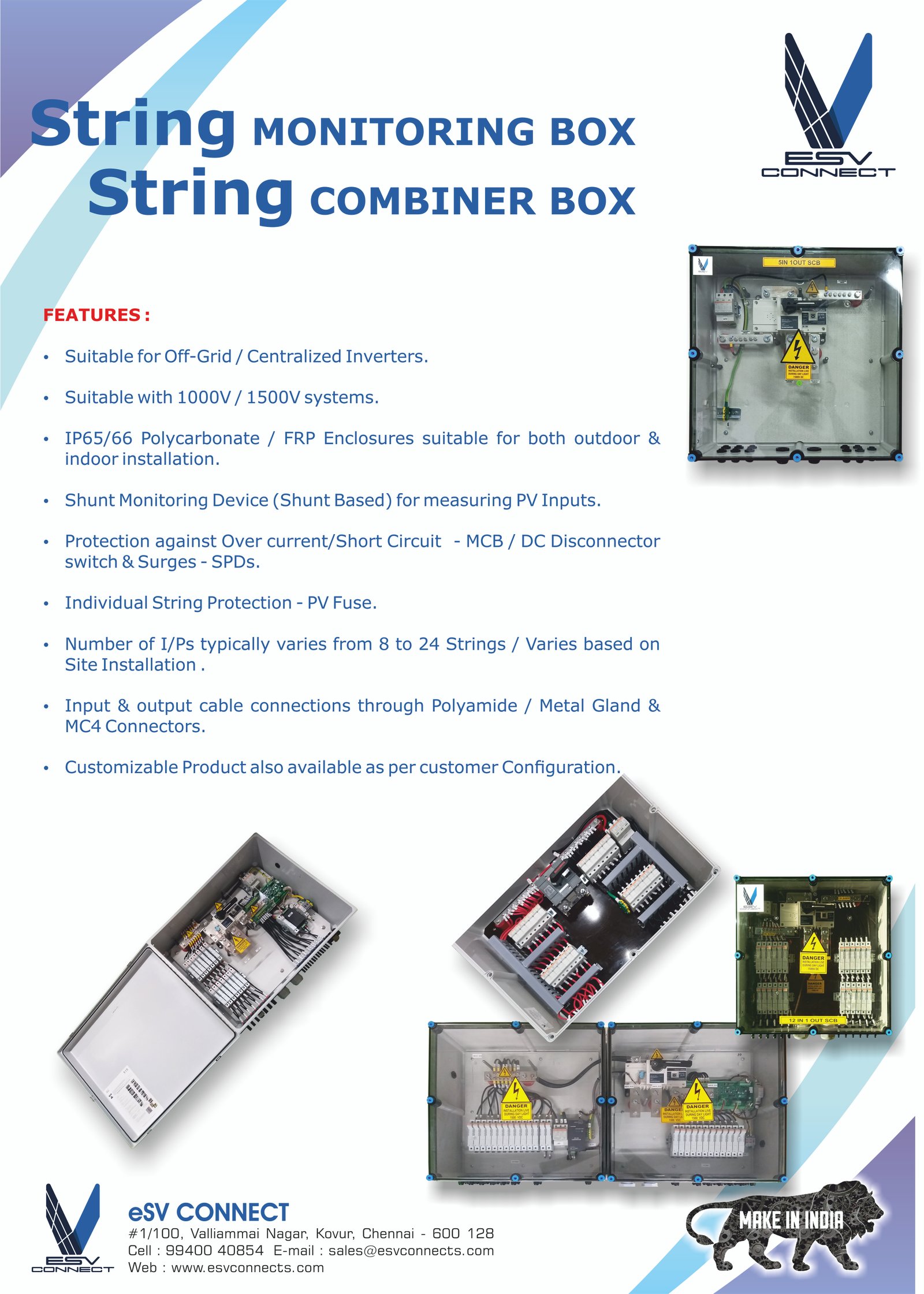

String monitoring box enables you to enjoy a high level of system performance monitoring, while providing exceptional system safety. It combines the multiple DC input coming from the panel termination and converts these into one DC output. The output of the box is connected to the inverter.
